Class: kationaniongeneration - CL-S18-N

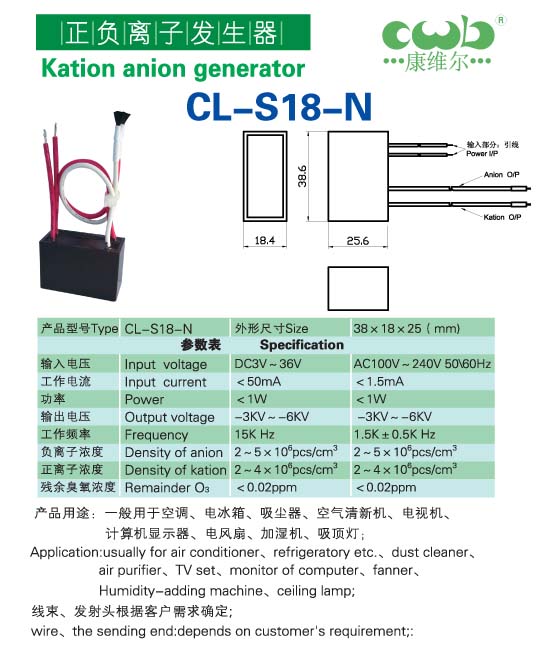

Product Name : Kation anion generator for air conditioner and refrigerator in AC or DC input Model No. CL-S18-N size: 38 x 18 x 25 (mm)
Comment:
Features:
●    Suitable for air conditioner, refrigerator, air purifier, dust cleaner, TV set, computer display, fanner, humidifier and ceiling lamp etc. It can realize your product distinguishability & increase product value.
●    Remove dust and produce additional negative ion to provide fresh air
●    Excellent efficacy for air purification and sterilization
●    Average life: 3-5 years (6000 hours for lamps)
●    The length and style for the wire and launcher can be customized
Key Specification:
Model No.
CL-S18-N
Size
38 x 18 x 25 (mm)
Input Voltage
DC3V~36V
AC100V~240V 50\60Hz optional
Input Current
<50mA
<1.5mA
Power
<1W
<1W
Output Voltage
-3KV ~ -6KV
-3KV ~ -6KV
Frequency
15 KHz
1.5 ±0.5 KHz
Release Anion Density
2~5 x 106 pcs/cm3
2~5 x 106 pcs/cm3
Release Kation Density
2~4 x 106 pcs/cm3
2~4 x 106 pcs/cm3
Remain Ozone Density
<0.02ppm
<0.02ppm
