Features:
● For AC input, it can be applied to air conditioner, air purifier, dust cleaner, TV set, computer display, fanner and humidifier etc. For DC input, it is usually applied to small arts and crafts gift, ashtray, toys and artificial flower etc or use in car. It can realize your product distinguishability & increase product value.
● Release high density of negative ion to provide fresh air
● Excellent efficacy for air purification and sterilization
● Average life: 3-5 years
● The length and style for the wire and launcher can be customized
Key Specification:

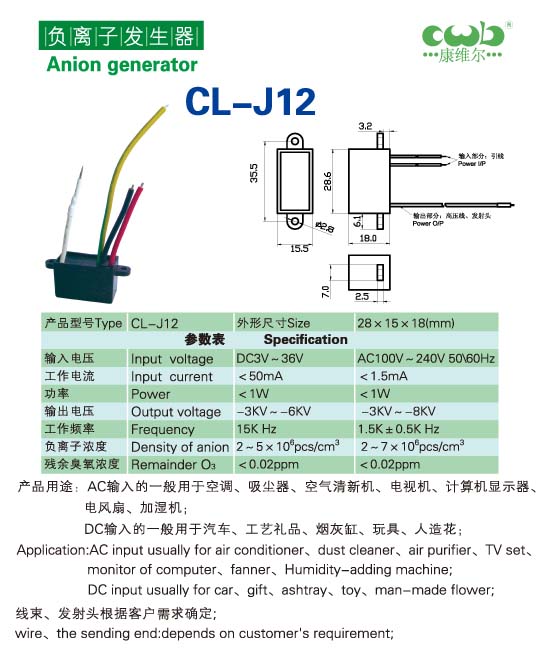

Model No. |
CL-J12 |
Size |
28 x 15 x 18 (mm) |
Input Voltage |
DC3V~36V |
AC100V~240V 50\60Hz optional |
Input Current |
<50mA |
<1.5mA |
Power |
<1W |
<1W |
Output Voltage |
-3KV ~ -6KV |
-3KV ~ -8KV |
Frequency |
15 KHz |
1.5 ±0.5 KHz |
Release Anion Density |
2~5 x 106 pcs/cm3 |
2~7 x 106 pcs/cm3 |
Remain Ozone Density |
<0.02ppm |
<0.02ppm | |
